CFM56 SGP is the first supper realistic training software of the most
successful commercial aircraft engine of all time - the CFM56.
Specially designed for teaching and self-studying
purposes, the CFM56 Family SGP avoids an unnecessary immobilization of an
actual jet engine, which can be costly and difficult. MROs, airlines and ATOs
can thus enjoying large financial and logistics benefits right away with more
flexibility in training schedules.
CFM56 Family SGP describes all CFM56 models:
On the CFM56
Family SGP you can naturally interact with the engine. This mode is used to study
the engine systems and parts.
The software contains a CBT of the engine, with detailed
information of each part of the engine. There are “curiosity buttons” (blue
buttons) distributed around the engine next to engine’s parts. By clicking on
them, a page will open with the explanation of the function of that specific part.

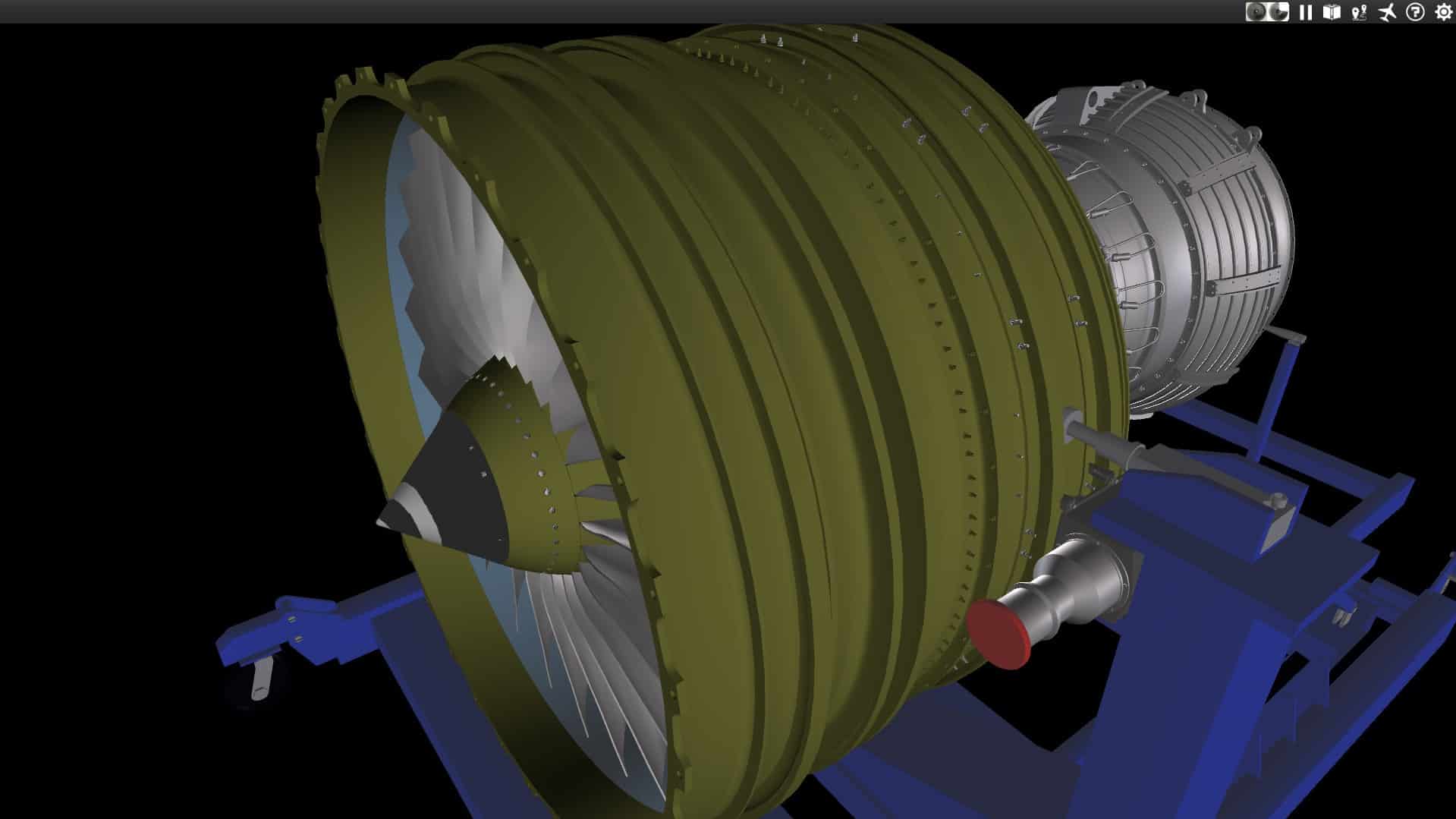

The interactive 3D real time environment will realistically
improve the training by turning pilots and engineers from passive into active
The main goal of the CFM56
Family SGP software is to improve the user’s education quality and qualifications
by having a better knowledge of the CFM56 enigne, allowing an easy and
objective familiarization with the engine. Studying an engine has never been so
easy and entertaining as before!
The CFM56 SGP is
designed for MROs, airlines and ATOs that operate the Airbus A320 family or
The A320 SGP is designed for airlines, ATOs, MROs and self-learning pilots and aircraft engineers that operate or are about to start operating the A320 family.
This software can be used:
CFM56 Family SGP is a study aid software, designed to be used in the classroom
or for self-learning users. Students can study the engine in a tridimensional way, self-paced at home
or at the classroom.
is suitable for people with little to no experience, allowing an easy and
objective familiarization with the CFM56 engine, improving their education
quality and qualifications by having a better knowledge of the CFM56
family. The key is preparation, all the time.
The CFM56 Family SGP will give the perfect initial familiarization
with the CFM56 engine. At the end of the course, the
CFM56-5B blueprint Source: CFMI
How difficult is it to have a real CFM56 disassembled
in modules at the classroom? The CFM56 Family SGP avoids unnecessary immobilization
of an actual engine.
Forget the traditional teaching methods and the google
search about a specific jet engine’s spot in the middle of the class.
and studying a jet engine has never been so easy and entertaining as
Traditional teaching methods
The CFM56 Family SGP is perfect to be used as a
complement support in the classroom. The teacher can show the CFM56 modules in
a high detail to their students in a tridimensional real-time environment
in the classroom, as well as its explanation (CBT), engaging the
students in a way that no video or PDF can.
The ideal teaching method using the CFM56 Family SGP is in a
classroom where all students can have their own computer with our software installed,
as they all can follow the teacher’s rhythm, hence being involved in the best
Improved teaching methods
ever been working in a real-time environment and needed to check a part of the
CFM56 engine and couldn’t get a way to check the engine itself? Either because
there was no engine module disassembled at the engine shop or simply there was
no engine available?
Pafaero’s super realistic CFM56 3D enhances engineering work, as it can be used
in real-time during work.
engine is divided in modules, and each module can be separated in minimodules to
enhance engineering work.
Family SGP engine
Contains a CBT of the CFM56 jet engine, with detailed information of all engine's parts. There are “curiosity
buttons” distributed around
the engine next to the parts.
By clicking on them, a page will open with the
explanation of the function of that specific part.
With over 140 CBT pages, the CFM56 Family
two types of intractable buttons:
For initial users of to teach at classroom,
there is a course guideline.
To access it, press the “modular design” button,
on the upper black bar and just follow the guideline.

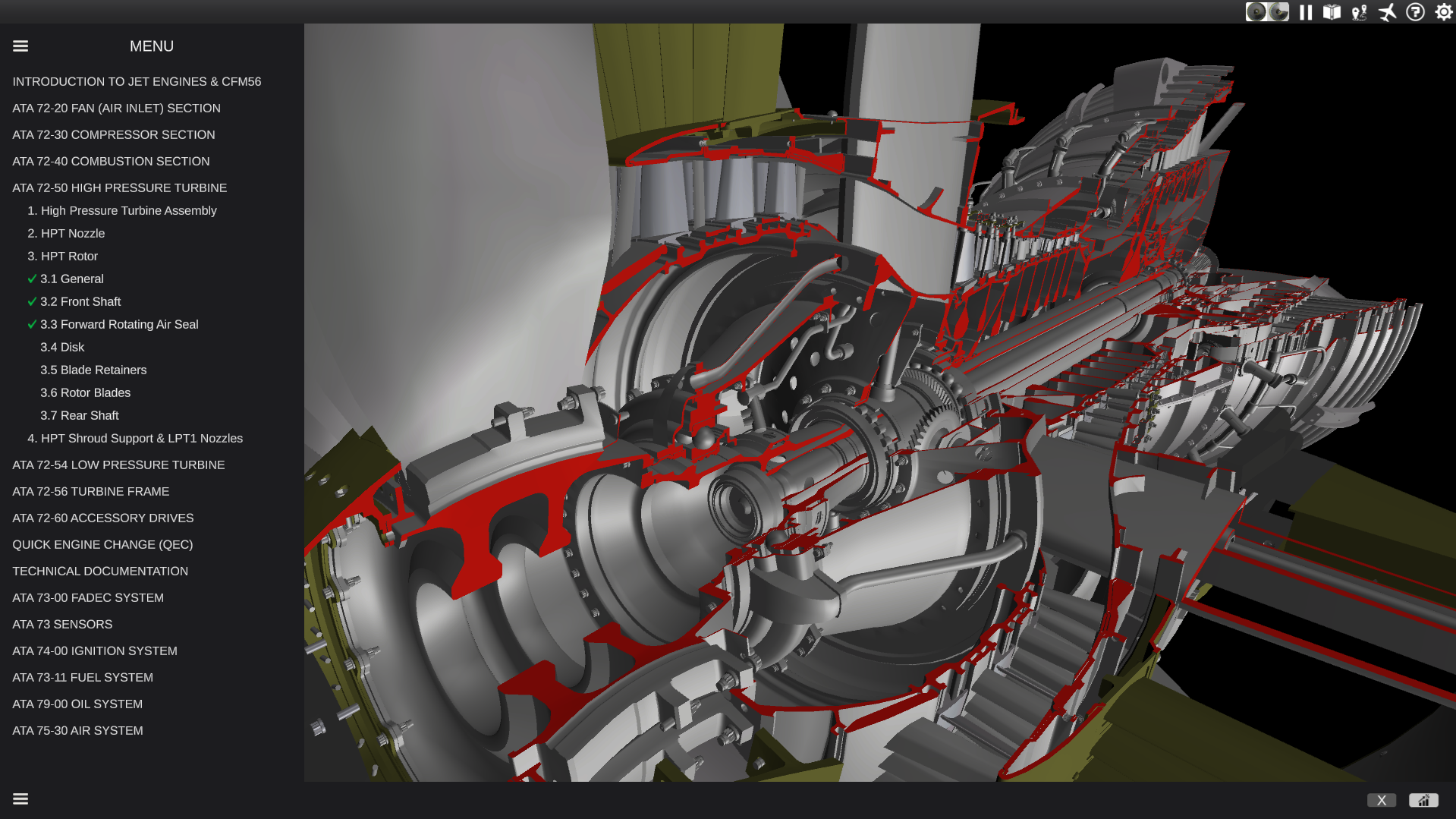

It starts with an
introduction to jet engines and why was the CFM56 built. Then, starts with the
CFM56 modules where each module is divided in minimodules.
“Modular design” button
The 3D engine’s modules are colored with
different colors. The “change view” button on the upper bar, is colored with
the same colors as the corresponding 3D engine’s modules.

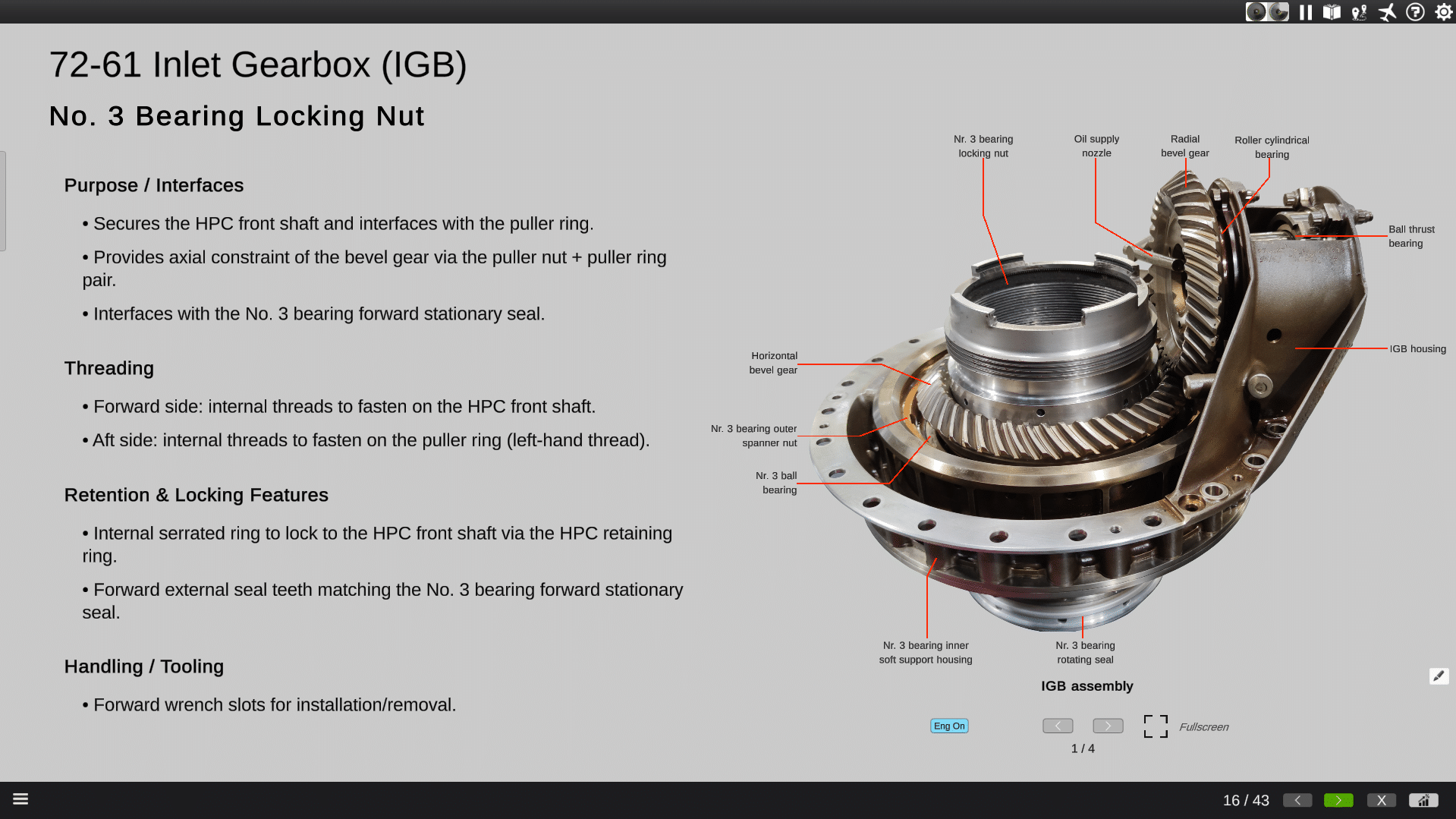

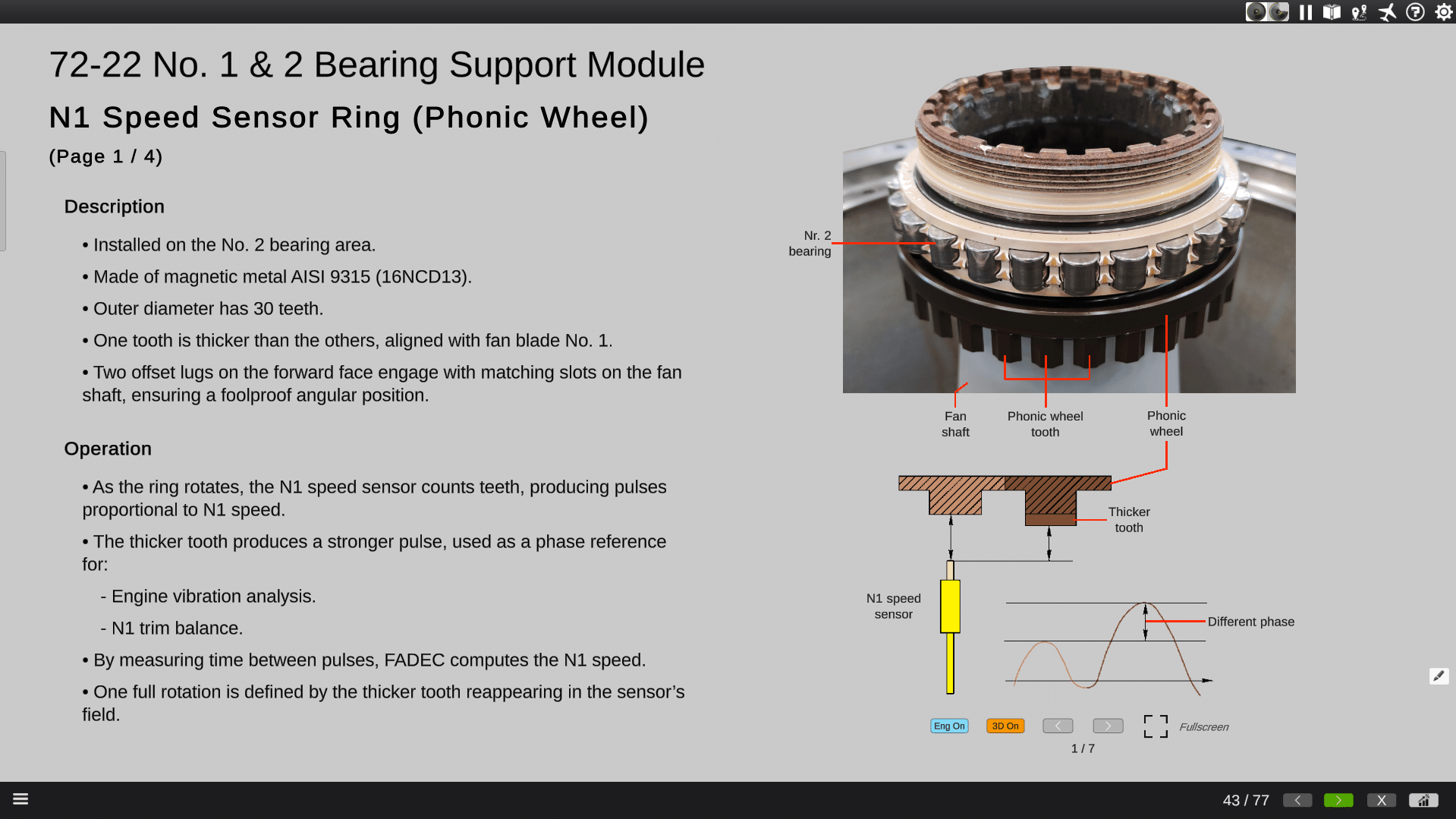

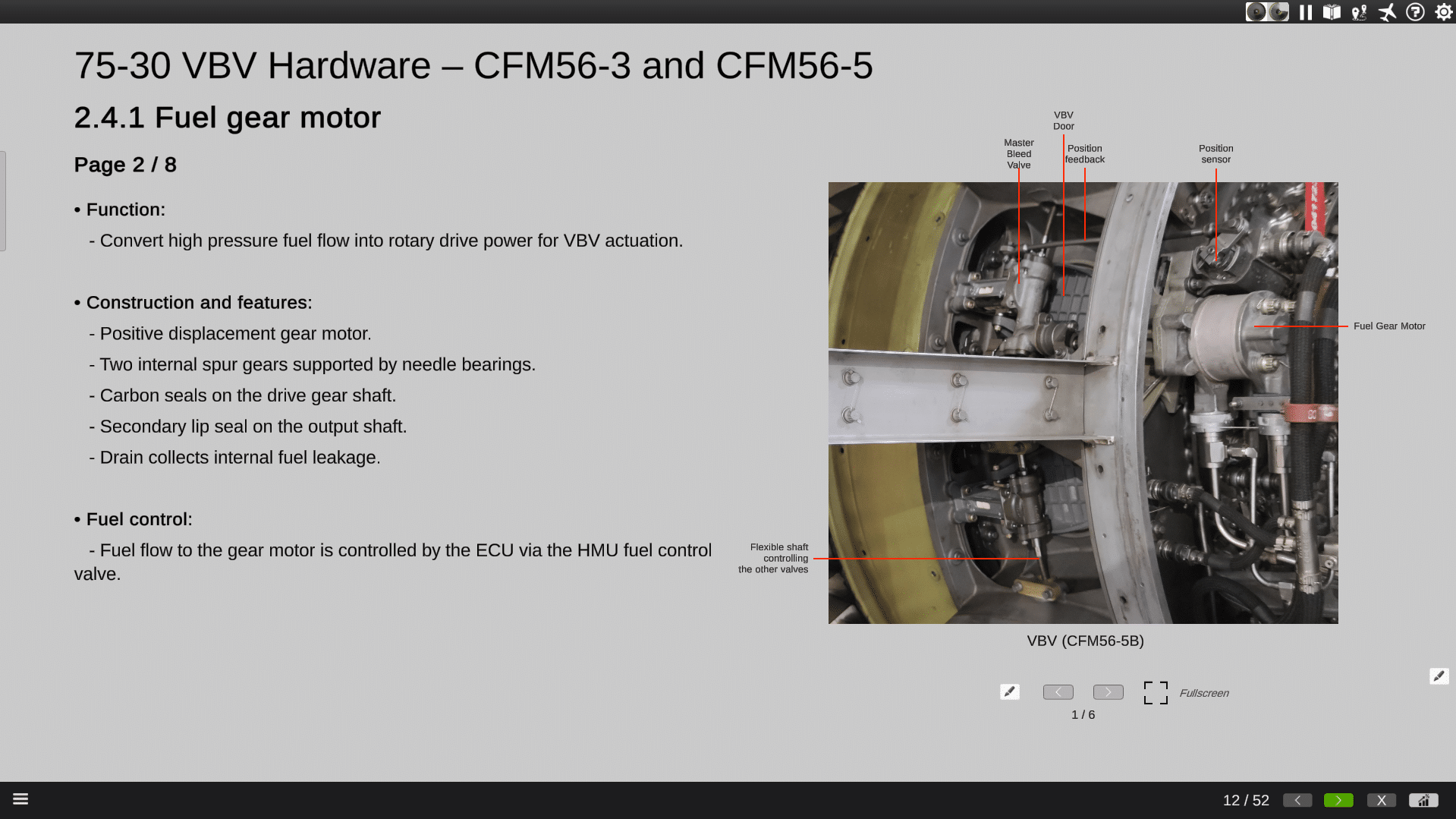

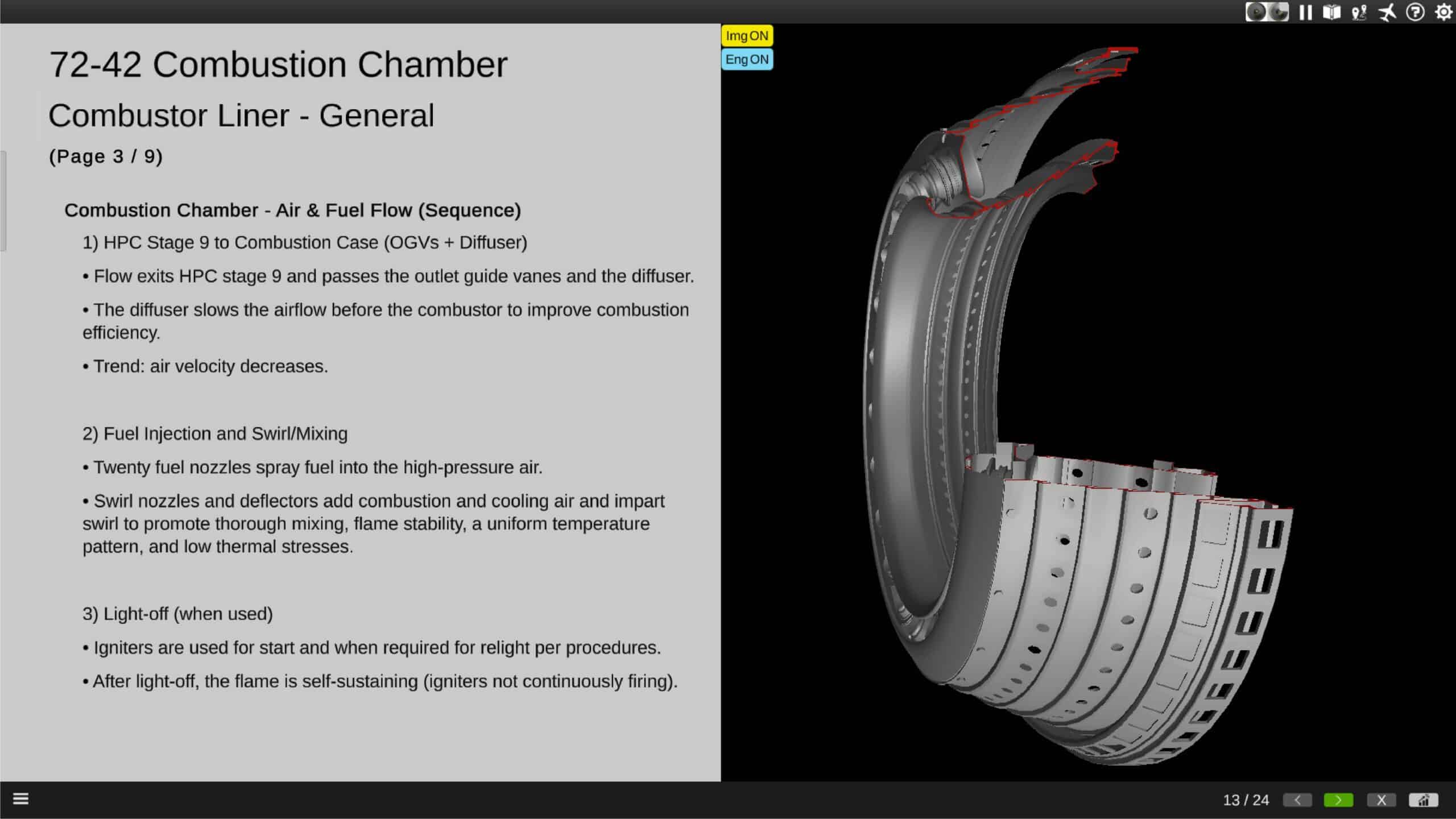

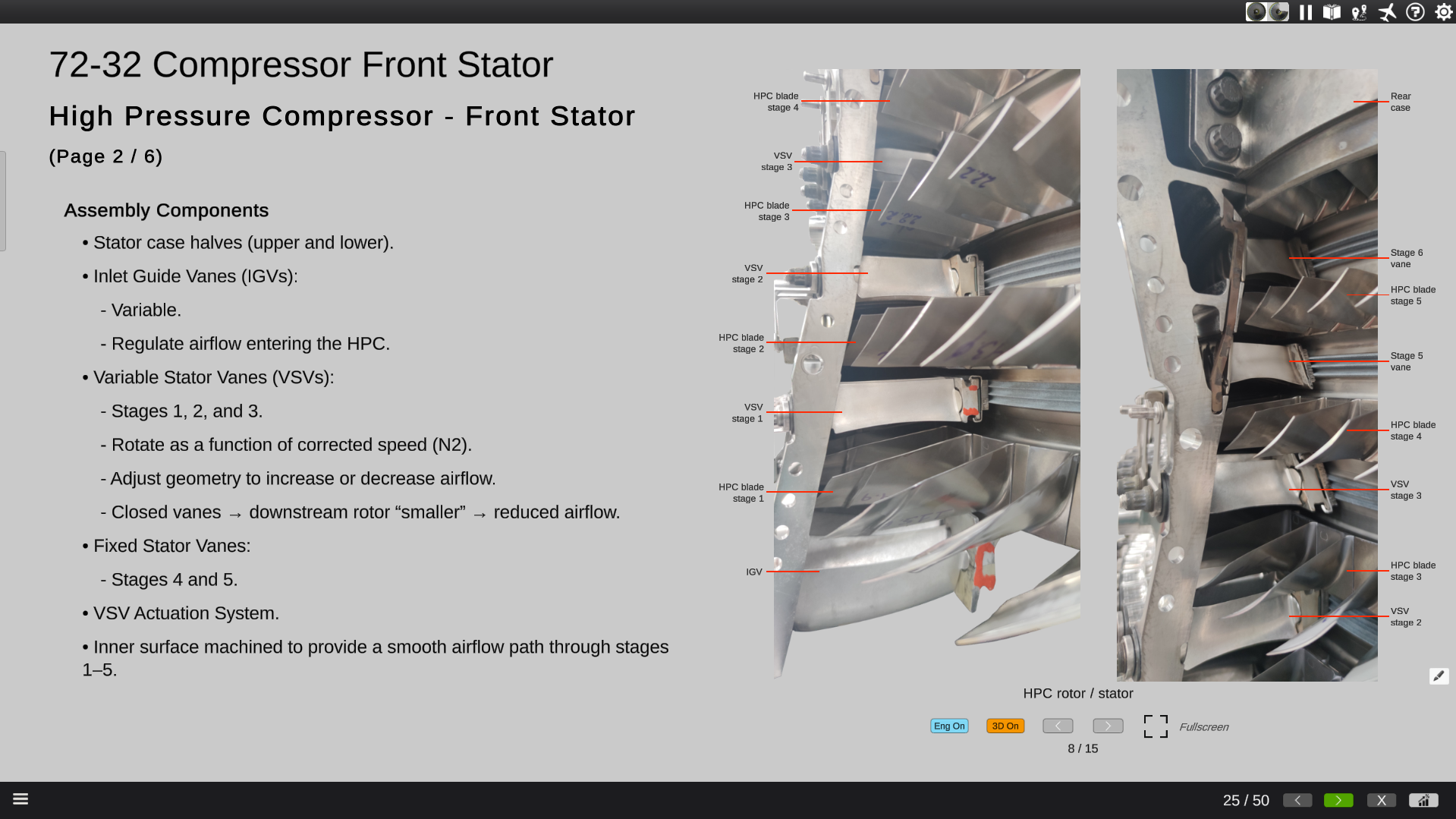

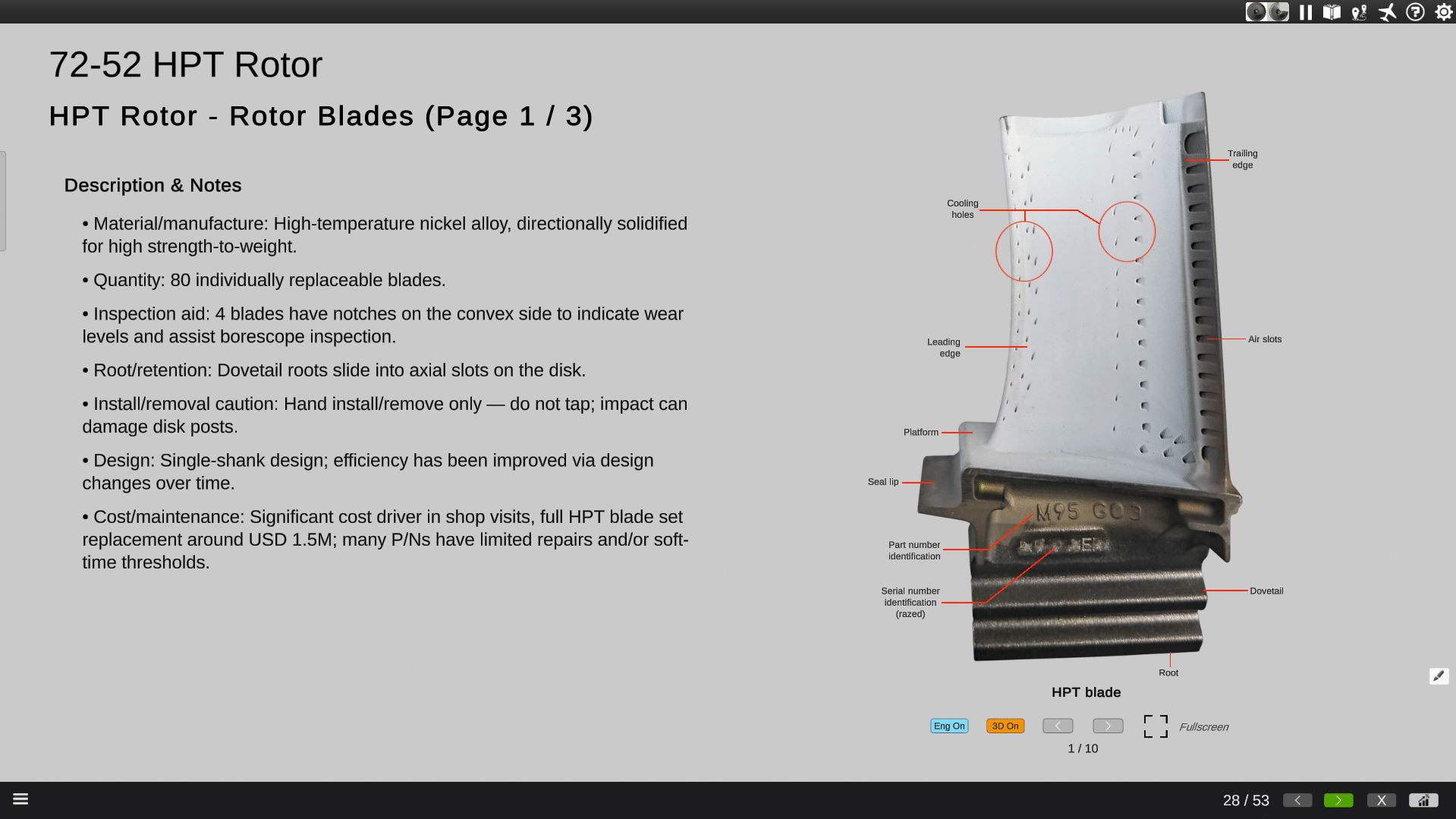

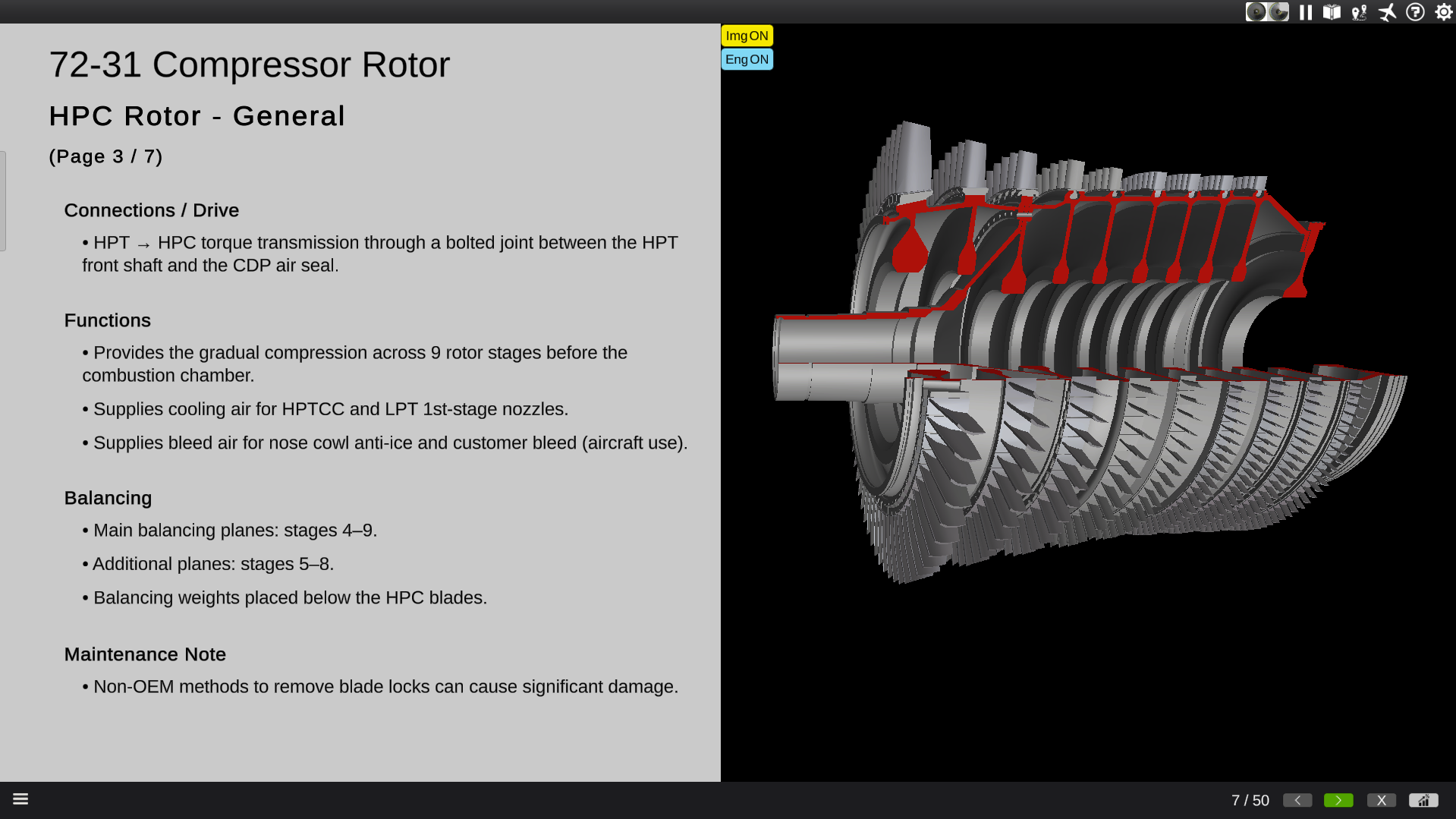

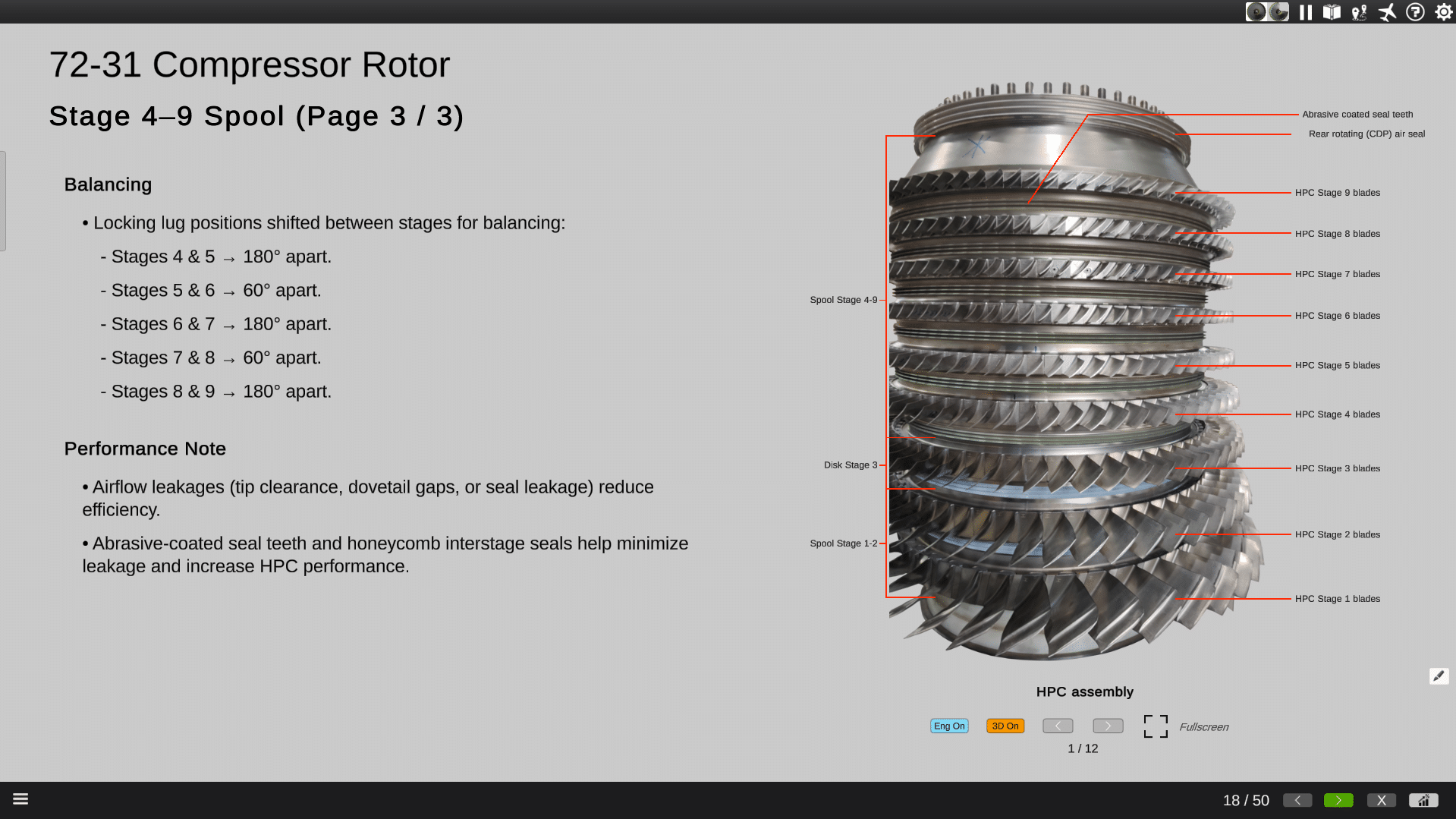

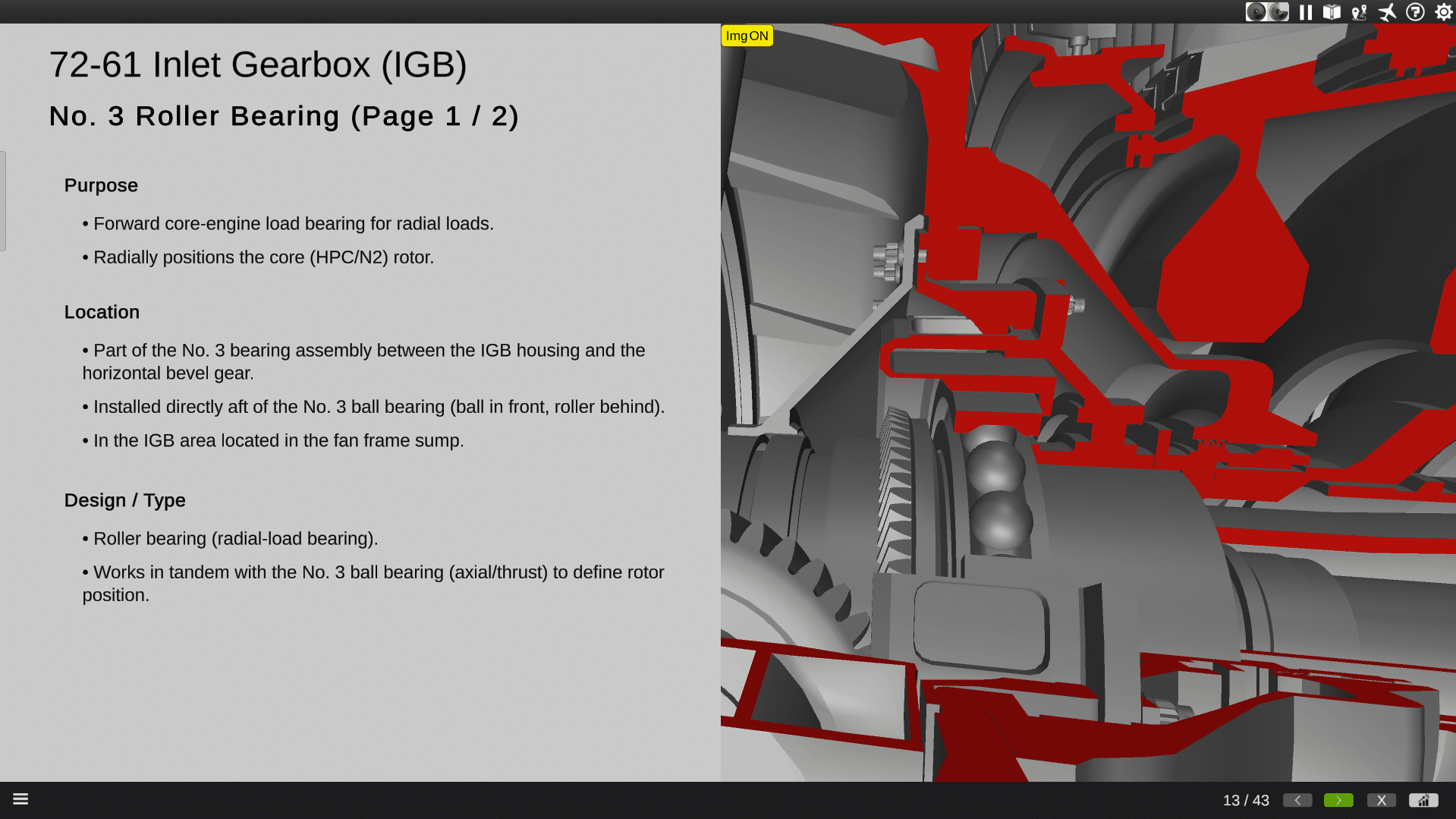

Engine’s part CBT page example
